HIGOLE F6 APL 10.1" POS Terminal & Industrial Tablet PC | Windows11

$179.99 $229.00

B2B Contact Us 👈

Barcode:

DESCRIPTION

10.1" Mini AIO PC Specifications

Touch Screen Windows/Linux Optional

📦 Physical

Form Factor	10.1" Industrial Tablet PC / POS Terminal
Dimensions	199 × 136 × 27 mm
Weight	0.7 kg

🖥️ Display & Touch

Screen Size	8"
Resolution	1280 × 800 (IPS + 250ANSI)
Touch Module	G+G Multi-Touch

🔋 Battery

Type	Recharge Li-ion battery (Optional)

⚙️ System Hardware

CPU	Intel Apollo Lake N4200, 1.1GHz ~ 2.5GHz (Quad-Core)
GPU	Intel HD Graphics 505
Memory	4GB LPDDR4
Storage	64GB eMMC, Optional SSD M.2 (22×42mm), Optional SATA 2.5" HDD
Speaker	8Ω/1W, built-in
Microphone	Optional, built-in
G-sensor	Yes

🌐 Network & Connectivity

Wi-Fi	Intel AC3165, 802.11ac/b/g/n 5G & 2.4G Dual-band
Bluetooth	Intel AC3165, Bluetooth 4.2
Ethernet	RJ-45, 100/1000 Mbps Gigabit LAN
4G LTE	M.2 4G Module (Optional)

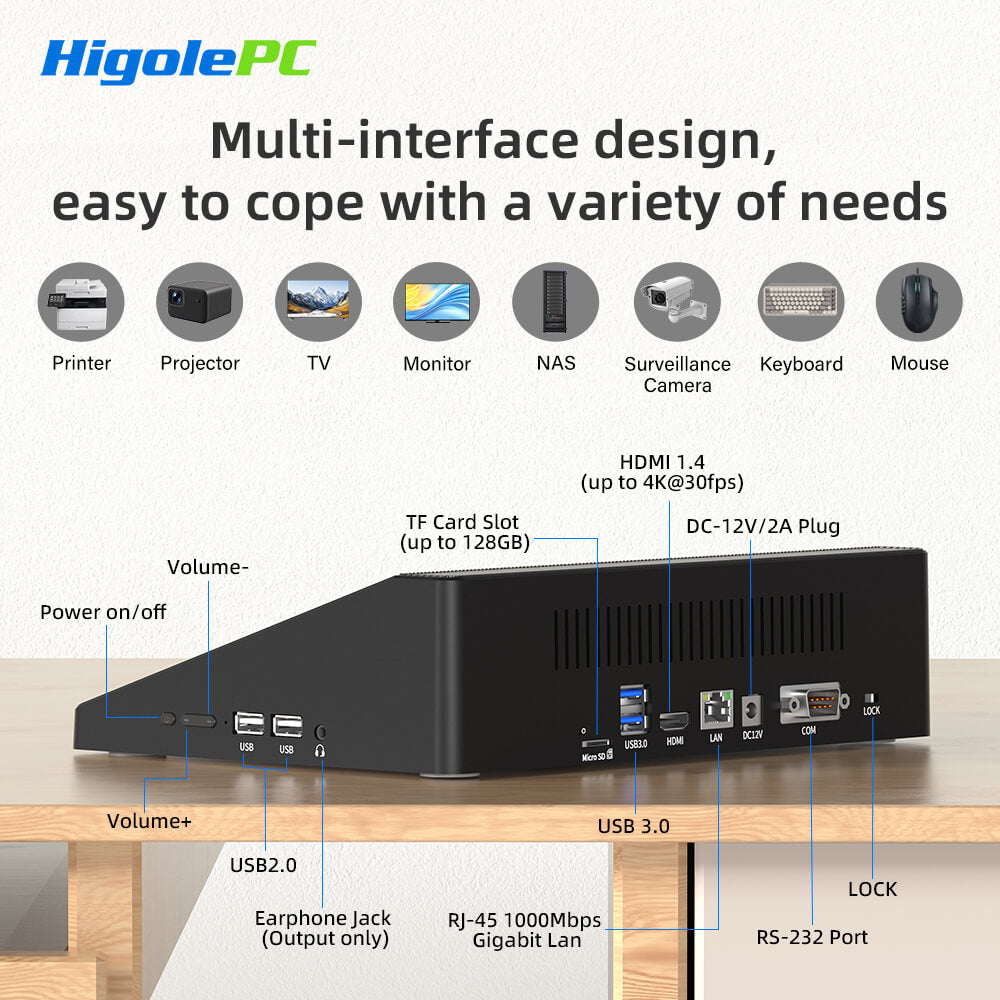

🔌 Interfaces & Ports

USB 3.0	×2pcs
USB 2.0	×2pcs
SD / TF Card	TF Card reader ×1 (up to 512GB)
Audio Jack	3.5mm headphone ×1
HDMI	HDMI 1.4 ×1 (Video output up to 4K)

🔘 Buttons

Power	On/Off ×1
Volume	Down/Up
CMOS Reset	Optional, reset by short press

🎁 Accessories

Power Adapter	DC 12V/2A ×1
User Manual	×1

💻 Software & Environment

Power on Function	By Power Button or Auto Power on (Optional)
Wake up on LAN	Support via RJ45
PXE	Preboot Execution Environment
Operating System	Windows 10 / Linux (Test by end user)
Operation Temp	-10°C ~ 50°C
Storage Temp	-20°C ~ 70°C
Humidity	Operating: 35%~80%, Storage: 20%~93%
CE	Optional

* Optional items can be customized per customer requirements.

F6 APL POS Terminal

– Compact, Flexible, and Efficient

The HIGOLE F6 APL 10.1" POS Terminal PC is designed for users who need desktop-level capabilities in a small, portable form factor. Its lightweight body, versatile connectivity, and optional storage or 4G expansion make it ideal for home offices, classrooms, kiosks, or industrial workstations.

With features like quad-coreprocessing, 4GB RAM, HDMI 4K output, and Wake-on-LAN, the F6 ensures smooth productivity, easy integration, and efficient daily computing, all in a compact, space-saving design.

Small Size, Big Potential

The HIGOLE F6 APL 10.1" Mini POS Terminal combines desktop functionality with ultra-compact design. Measuring 199×136×27mm and weighing just 0.7kg, it’s ideal for space-limited workstations, home offices, or portable computing setups.

Quad-Core Computing for Everyday Tasks

Powered by Intel Apollo Lake N4200 Quad-Core CPU with Intel HD Graphics 505, 4GB LPDDR4 RAM, and 64GB eMMC storage, the F6 Mini AIO PC handles office applications, streaming, light productivity software, and educational tasks efficiently. Optional M.2 SSD or 2.5" SATA HDD enables flexible storage expansion.

Connect, Expand, and Integrate

The F6 APL supports Wi-Fi dual-band 802.11ac, Bluetooth 4.2, RJ45 Gigabit Ethernet, and optional 4G LTE M.2 modules. With USB3.0/USB2.0 ports, TF card reader, HDMI 4K output, and audio jack, it integrates seamlessly with peripherals, displays, and industrial or educational networks.

Frequently Asked Questions

Q: Can the F6 run Windows 10 or Linux?

A: Yes, it supports Windows 10 (optional) and can run Linux tested by end users.

Q: Does it support auto power on or Wake-on-LAN?

A: Yes, both auto power on and Wake-on-LAN via RJ45 are supported.

Q: What is the operating environment?

A: -10°C to 50°C operating temperature and 35%-80% humidity for reliable performance.

Q: Can I expand storage?

A: Yes, optional M.2 SSD or 2.5" SATA HDD provides flexible storage expansion.

Compact, Powerful HIGOLE Mini PC

The HIGOLE F6 APL is a fanless Windows mini PC perfect for office, industrial POS, or fieldwork. Its compact design, optional touchscreen, and rugged performance make it one of the best mini PCs for office and on-the-go tasks.
