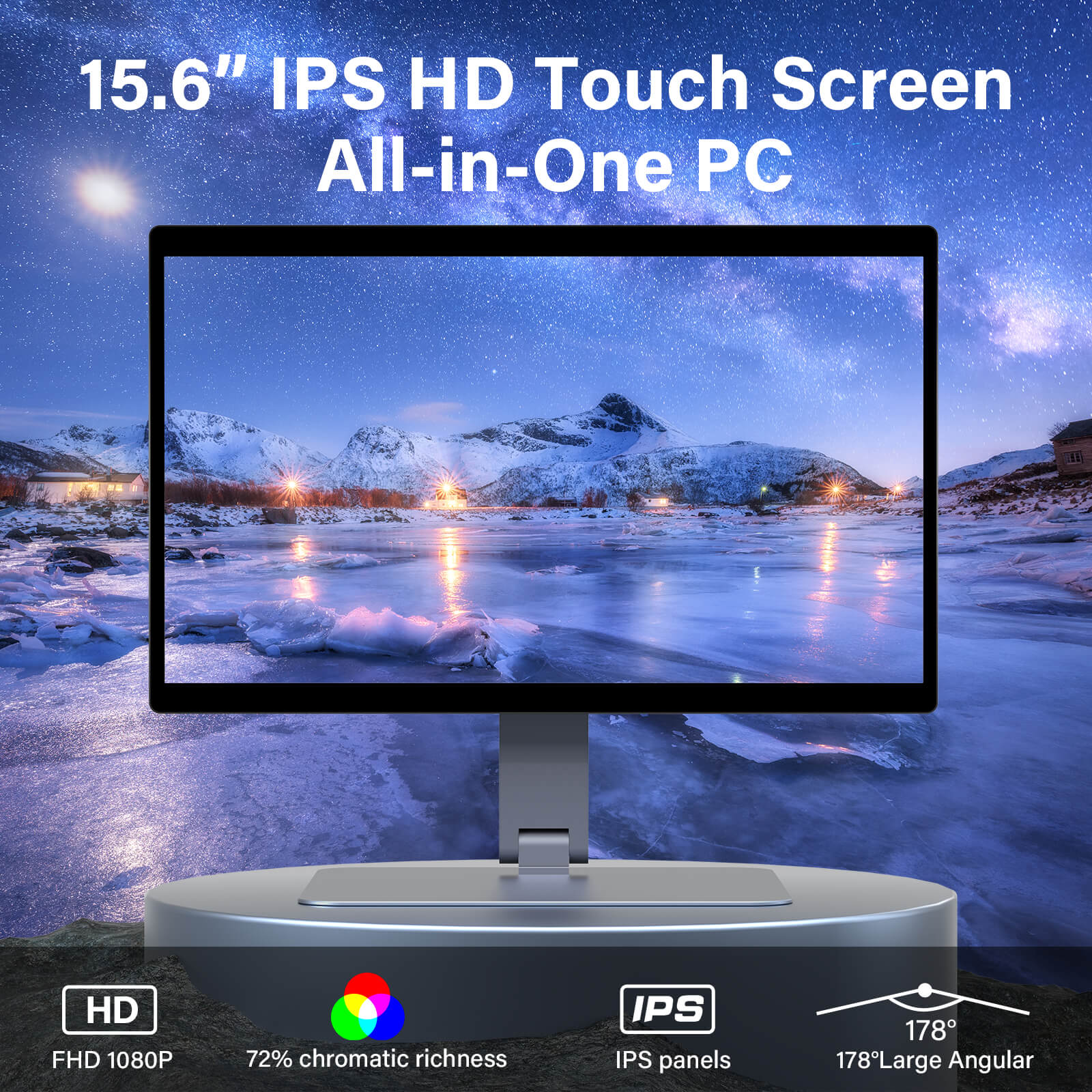

HIGOLE F15 15.6" POS Terminal & Industrial Tablet PC | Windows 11
HIGOLE F15 15.6" POS Terminal & Industrial Tablet PC | Windows 11
Couldn't load pickup availability
Product Parameter Table
Product Parameter Table
Product Specifications
Product Name： Higole F9B
Features： 7" Inch Screen Mini PC with Fan
Dimensions：173×116×26mm
Weight ：0.56KG
Resolution ：1280*800 (IPS+HD+300ANSI)
Touch Module ：G+G Multi-Touch (5 Points)
Battery： 5000mAh/7.6V (Over 4 hours (FHD local video display))
Operating System ：Windows 11 Pro
System Hardware Configuration
CPU Type ：12th Gen Alder Lake-N100
CPU Speed ：Up To 3.4GHz
Memory Storage ：16GB DDR4,256GB eMMC
GPU Type ：Intel® UHD Graphics
Wireless Connectivity ：Wi-Fi Dual-band 1T1R 11ac + Bluetooth 5.0
Rich Interface I/O
I/O Ports ：SIM Slot for 4G LTE ×1PCS (Only available in 256GB model)
Type-C 3.1 ×1PCS（Full functionality)
USB3.2 ×2PCS
USB3.0 ×2PCS
TF Card Reader ×1PCS (Up To 512GB)
3.5mm standard headphone+Microphone ×1PCS
RJ45 ×2PCS
On/Off ×1PCS
Down/UP ×1PCS
Power restart when push restart button ×1PCS
DC 12V/3A ×1PCs
HiGole Mini Pc Manufacturers
📦 Physical
| Form Factor | 15.6" PC+Tablet |
|---|---|
| Dimensions | 241.5 × 160.2 × 66.1 mm |
| Weight | 0.8 kg |
🖥️ Display & Touch
| Screen Size | 15.6" |
|---|---|
| Resolution | 1920 × 1080 (IPS) |

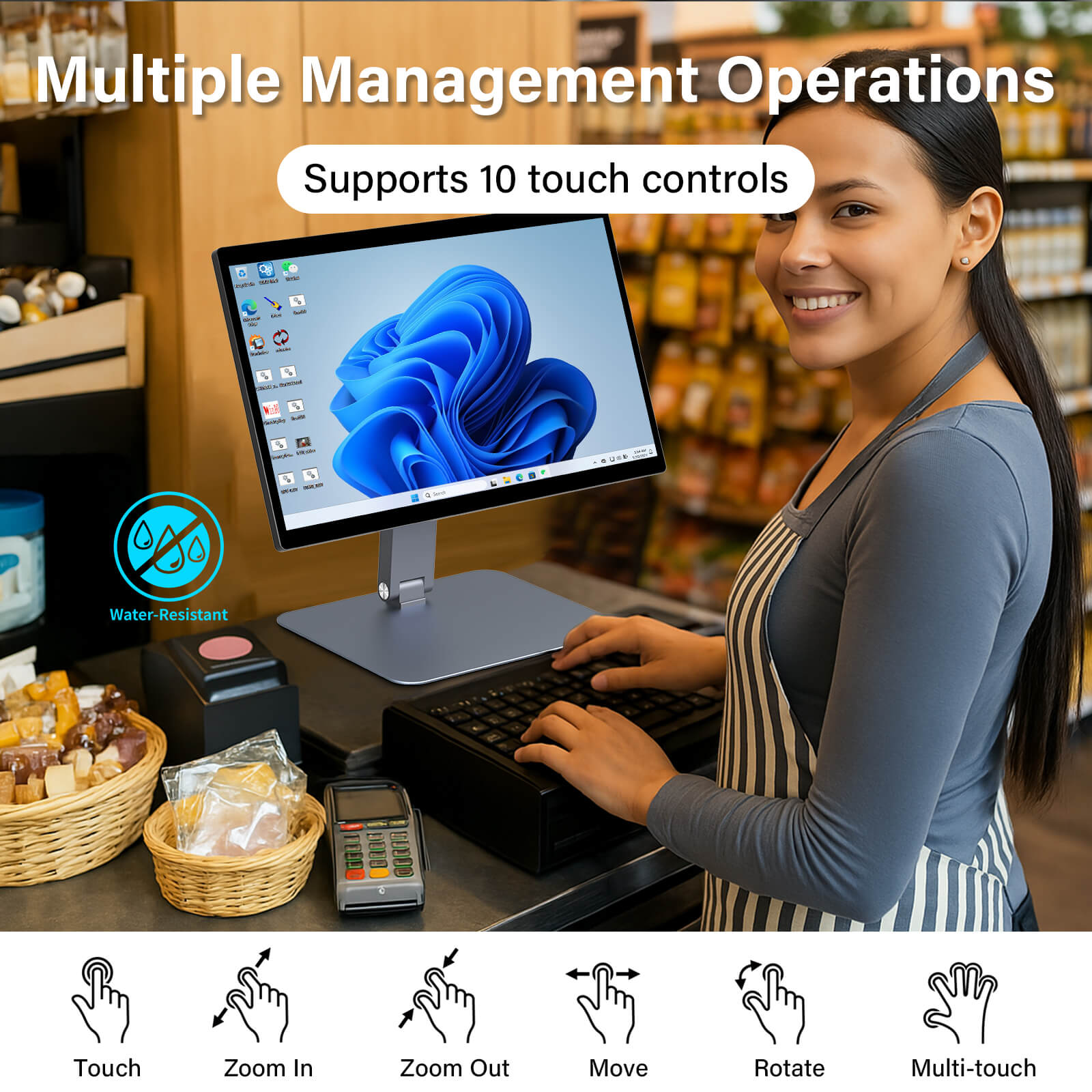

| Touch Module | G+G 10 Multi-Touch |
🔋 Battery
| Type | Rechargeable Li-polymer |
|---|---|
| Capacity | Optional 5000mAh / 7.6V |
| Working Time | 4.5 hours (HD local video display) |

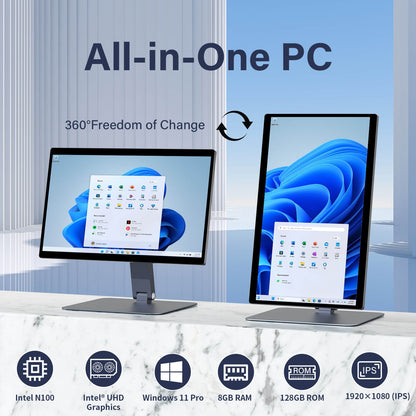

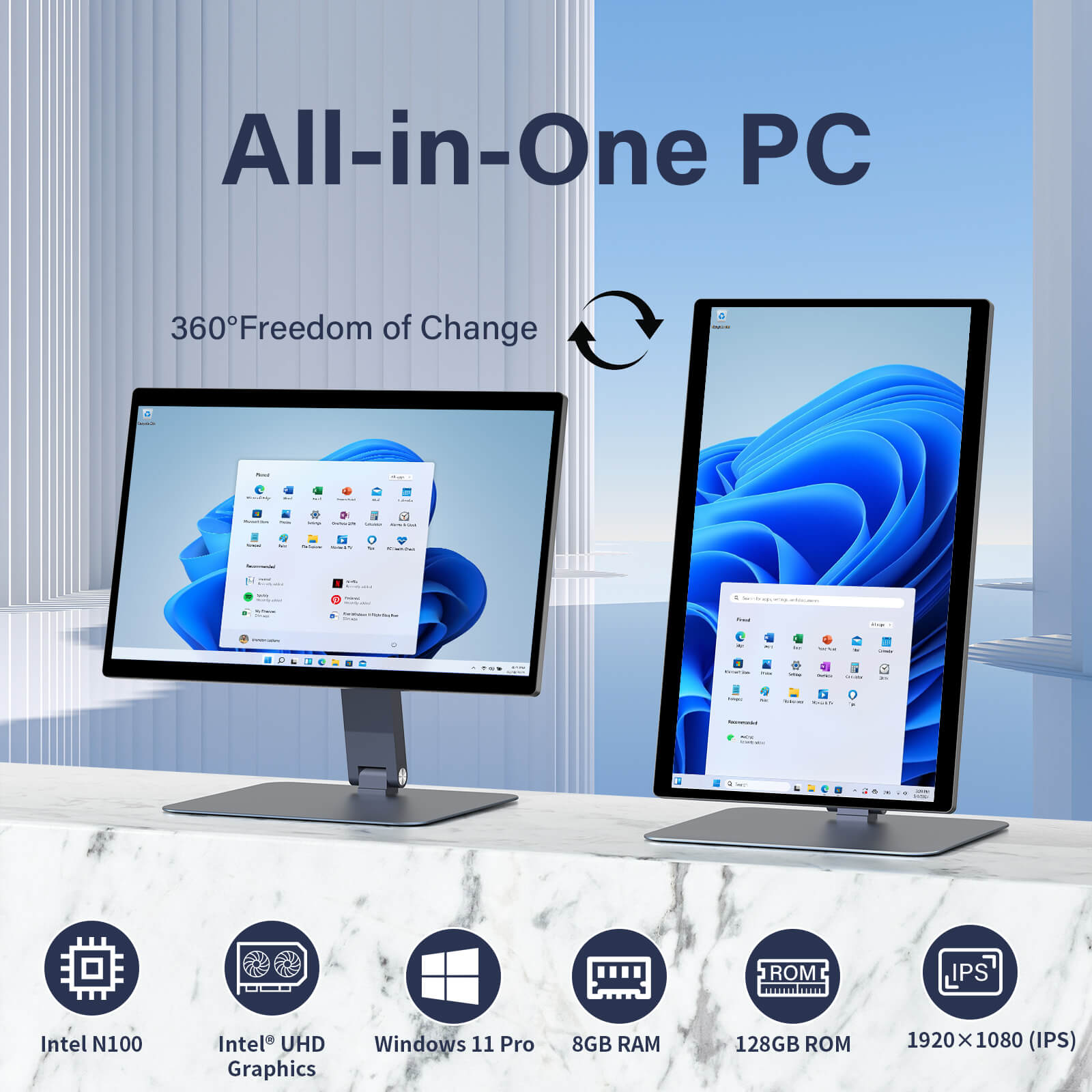

⚙️ System Hardware
| CPU | Intel Celeron N5105/N5095, 2.0GHz ~ 2.90GHz |
|---|---|
| GPU | Intel UHD Graphics |
| Memory | 8GB / Optional LPDDR4 |
| Storage | 128GB eMMC (Optional), NVME ×1pc, SATA 2.5" HDD / |
| Speaker | Optional 8Ω/1W |
| Microphone | Optional, built-in |
| G-sensor | Yes |
🌐 Network & Connectivity
| Wi-Fi | RTL8852BE-CG, WiFi5 |
|---|---|
| Bluetooth | RTL8852BE-CG, Bluetooth 5.0 |
| Ethernet | RJ-45, 1000 Mbps Gigabit LAN |

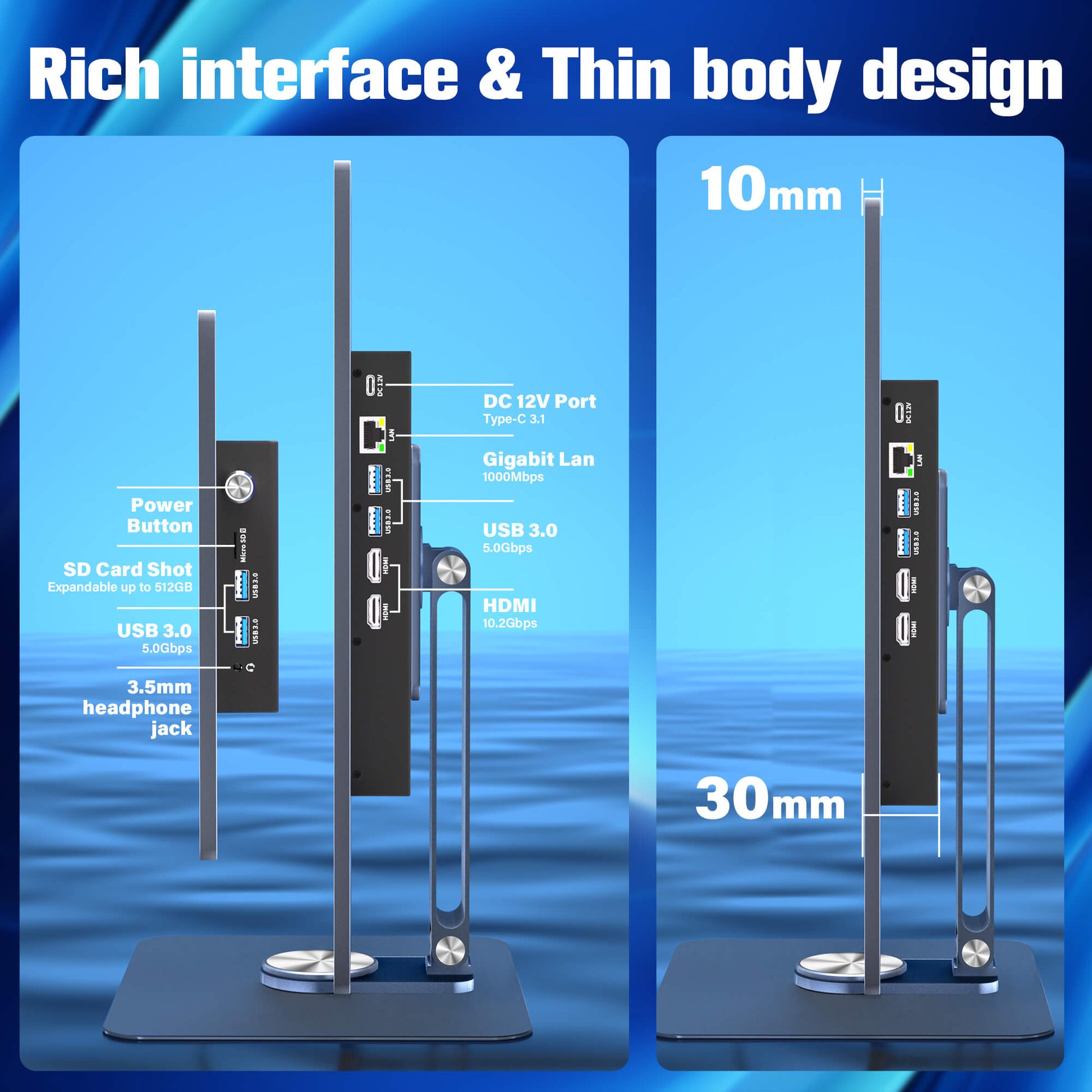

🔌 Interfaces & Ports
| USB | USB 3.0 ×4 (5V/1A) |
|---|---|
| Type-C | Type-C 3.1 ×1 |
| SD/TF Card | TF Card reader ×1 (up to 512GB) |
| Audio Jack | 3.5mm headphone (Output only) ×1 |
| COM Port | DB9 (RS232) ×2pcs |
| HDMI | HDMI 2.0 ×1pc |
🔘 Buttons
| Power | On/Off ×1 |
|---|---|
| Volume | Down/Up |
| CMOS Reset | Reset by Short Press |
🎁 Accessories
| Power Adapter | DC 12V/3A ×1 |
|---|---|
| User Manual | ×1 |
💻 Software & Certification
| Power on Function | By Power Button or Auto Power on (Optional) |
|---|---|
| Wake up on LAN | Via RJ45 |
| PXE | Preboot Execution Environment |
| Operating System | Windows 11 / Linux (Optional) |
| CE | Yes |
