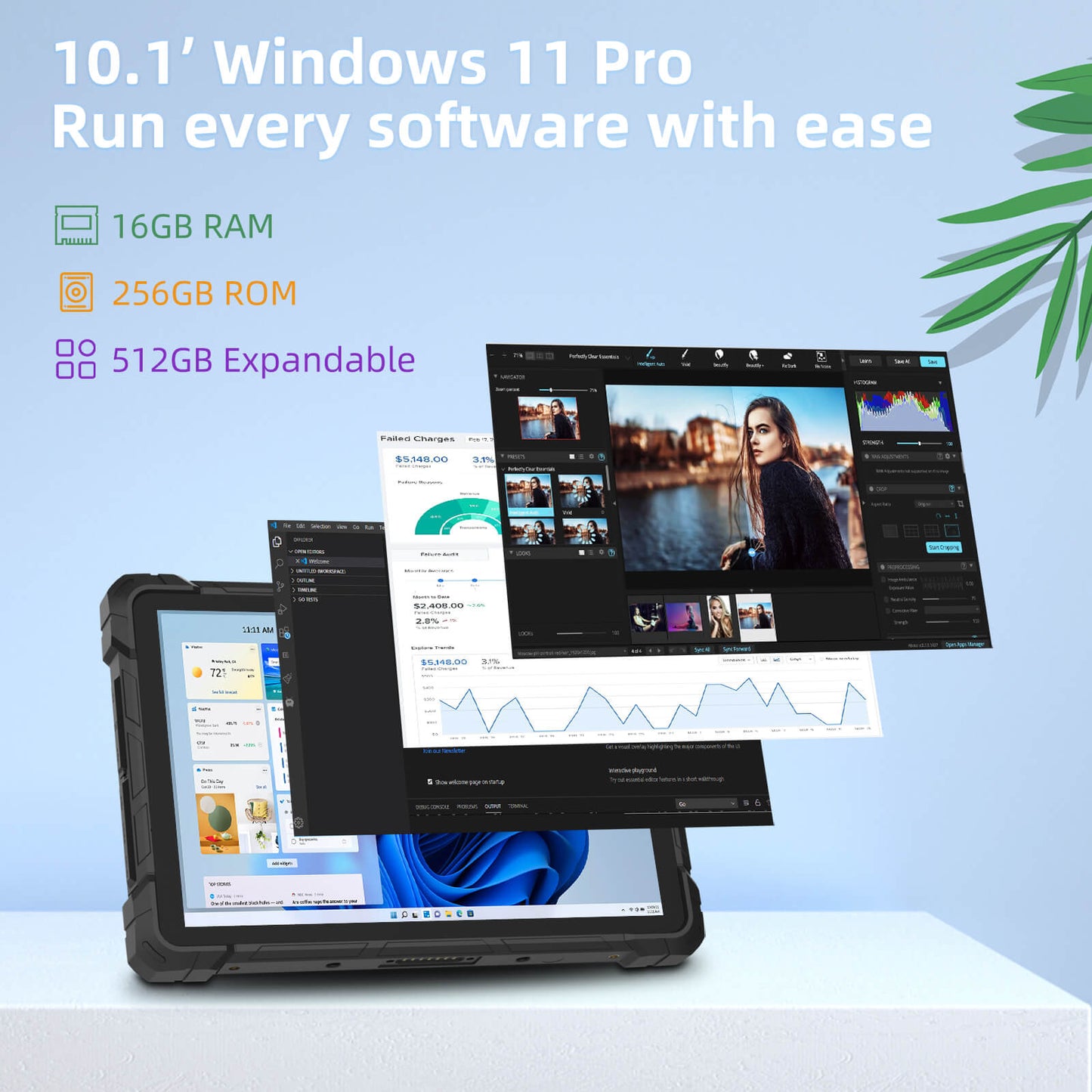

HIGOLE F9A 10.1“ Rugged Tablet PC
HIGOLE F9A 10.1“ Rugged Tablet PC
Couldn't load pickup availability
Product Parameter Table
Product Parameter Table
Product Specifications
Product Name： Higole F9B
Features： 7" Inch Screen Mini PC with Fan
Dimensions：173×116×26mm
Weight ：0.56KG
Resolution ：1280*800 (IPS+HD+300ANSI)
Touch Module ：G+G Multi-Touch (5 Points)
Battery： 5000mAh/7.6V (Over 4 hours (FHD local video display))
Operating System ：Windows 11 Pro
System Hardware Configuration
CPU Type ：12th Gen Alder Lake-N100
CPU Speed ：Up To 3.4GHz
Memory Storage ：16GB DDR4,256GB eMMC
GPU Type ：Intel® UHD Graphics
Wireless Connectivity ：Wi-Fi Dual-band 1T1R 11ac + Bluetooth 5.0
Rich Interface I/O
I/O Ports ：SIM Slot for 4G LTE ×1PCS (Only available in 256GB model)
Type-C 3.1 ×1PCS（Full functionality)
USB3.2 ×2PCS
USB3.0 ×2PCS
TF Card Reader ×1PCS (Up To 512GB)
3.5mm standard headphone+Microphone ×1PCS
RJ45 ×2PCS
On/Off ×1PCS
Down/UP ×1PCS
Power restart when push restart button ×1PCS
DC 12V/3A ×1PCs
HiGole Mini Pc Manufacturers
📦 Physical
| Form Factor | F9A IP67 Rugged Tablet PC |
|---|---|
| Dimensions | 280 × 184 × 26.5 mm |
| Weight | 1.15 kg |
🖥️ Display & Touch
| Screen Size | 10.1" |
|---|---|
| Resolution | 1920 × 1200 (IPS + HD + 300 ANSI) |
| Touch Module | G+G Multi-Touch (10 Points) |
🔋 Battery
| Type | Rechargeable Li-polymer |
|---|---|
| Capacity | 8000 mAh / 7.6 V |
| Working Time | Over 8 hours (FHD local video display) |
⚙️ System Hardware
| CPU | 12th Intel Alder Lake-N100, Quad-Core, up to 3.4 GHz |
|---|---|
| GPU | Intel UHD Graphics |
| Memory | 8 GB / 16 GB LPDDR5 |
| Storage | 128 GB / 256 GB eMMC |
| Camera | Front: 500 MP, Rear: 13000 MP |
| Speaker | 8Ω / 1W ×2, water-proof |
| Microphone | Built-in |
| G-sensor | Yes |
| Light-sensor | Optional |
🌐 Network & Connectivity
| Wi-Fi | RTL8821CE-VC, Dual-band 1T1R 11ac |
|---|---|
| Bluetooth | Bluetooth 5.0 |
| 4G LTE | Optional (Mini PCI-E slot) |
| QR Code Scanner | Optional |
| GPS | BD2 / GPS / Glonass (Choose 2 of 3) Optional |
| NFC | Optional |
| Fingerprint | Optional |
| RFID | UHF Band Optional |
| Ethernet | RJ-45, 1000 Mbps Gigabit LAN |
🔌 Interfaces & Buttons
| Type-C | Type-C 3.1 ×1 (Full functionality) |
|---|---|
| USB | USB3.2 ×2 |
| SD / TF Card | TF Card reader ×1 (up to 512GB) |
| SIM Slot | SIM for 4G LTE ×1 |
| Audio Jack | 3.5mm headphone + Microphone ×1 |
| COM Port | DB9 (RS232) ×1 |
| Power Button | On/Off ×1 |
| Volume | Up/Down ×1 |
| HotKey | Hot Key for QR Scanner ×1 |
| Forced Outage | Power restart when pushing restart button ×1 |
🎁 Accessories
| Power Adapter | DC 12V/3A ×1 |
|---|---|
| User Manual | Included ×1 |
| Handle Straps | Optional, hand clasping |
| Extension Docking | Optional, USB2.0 / Power charging / RS232 |
| Vehicle Bracket | Optional, USB2.0 / Power charging / RJ45 / RS232 |
💻 Software & Environment
| Power on Function | By Power Button or Auto Power on |
|---|---|
| Wake up on LAN | Yes, via RJ45 |
| PXE | Yes |
| Operating System | Windows 11 Pro or above (Official license optional) |
| Operation Temperature | -10°C ~ 55°C (1080p or 4K local video display) |
| Storage Temperature | -20°C ~ 70°C (Restore to operation temp 2hr before use) |
| Operating Humidity | 35% ~ 80% RH, non-condensing |
| Storage Humidity | 20% ~ 93% RH, non-condensing |
✅ Certification
| IP67 | Yes |
|---|---|
| CE | Yes (CE-Red) |
